LCM

A demountable, straight, powder-coated steel stand with easy and quick height adjustment (trapezoidal thread with wing nut) for all boats up to 18 m. Offered in several variants to suit every type of boat. Primary aimed for clubs, shipyards, and marinas with firm surface conditions.

  • Very easy to dismantle for storage and transportation
  • Quick and easy height adjustment (winged nut and trapezoidal thread)
  • Maintenance-free, large, pivoted hull plate with profiled hull protection of quality rubber
  • Long-life, with no need for a bulky stockpile off-season
  • Delivered unassembled

General recommendations:

Sailboat/motor sailor: LCF
Motorboat: LCM, can also be combined with LCF

  • Boat stands should only be used on firm surface where surrounding conditions (like weather) never affect the stability

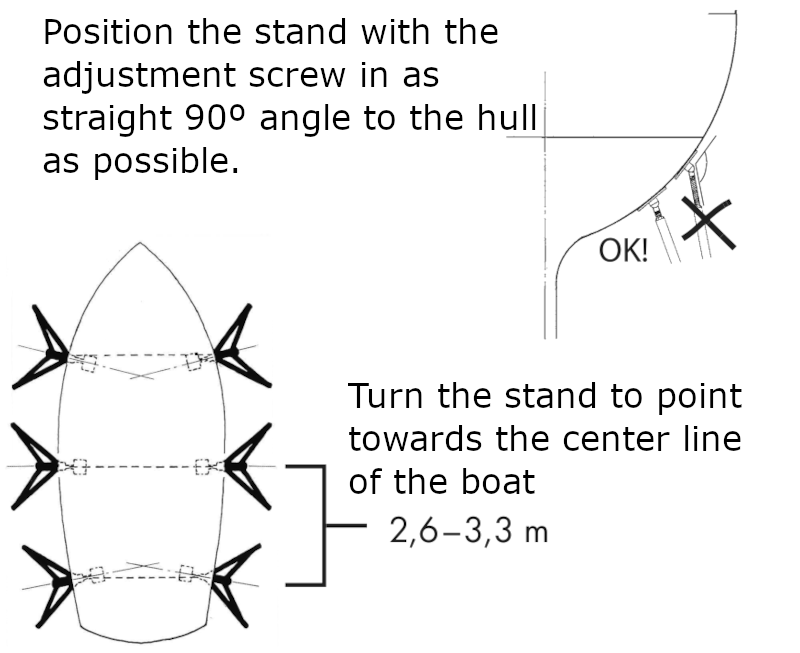

  • Position the stands according to the boat manufacturers recommendations, normally a pair of stands for every 2,6–3,3 m
  • The entire weight of the boat should be borne by the keel support, not by the stands
  • The keel support should be placed depending on the weight distribution of the boat
  • Use wide, large sized blocks (or keel stand) as keel support
  • Select size of stand to ensure equal adjustment for the thread in both directions
  • Safety strap should always be used to secure the stands to each other
  • Never tie anything to the stands (like cover). In heavy wind the stands might be pulled away

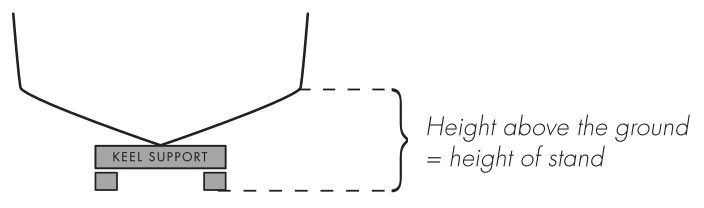

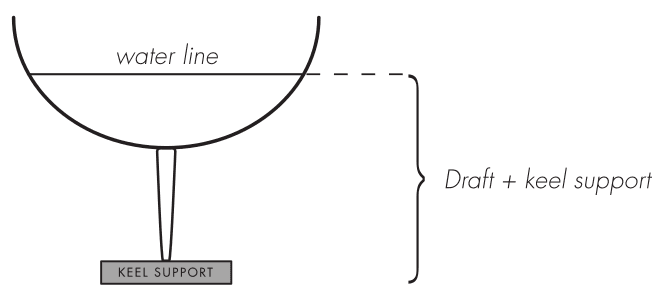

Variant of steel stand is determined by bottom shape and keel support. LCM is used for flat bottom shape. LCF is used for all other bottom types.
The number of stands is determined by weight, length, and draft of the boat.

If in doubt – consult the manufacturer.
